Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Lintratek
  • Model Number: KW20L-WCDMA repeater gsm
  • Product name: gsm repeater
  • Gain: 70dbi
  • Output Power: 20dbm
  • Product Size: 200*110*25mm
  • Net Weight: 1kg
  • Frequency: UL:1920-1980mhz DL:2110-2170mhz
  • Coverage: 500-1000sqm
  • Connector: N female
  • Certificate: CE,ISO
  • Quality Warranty: one year

Packaging & Delivery

Packaging Details: Neutral carton
Delivery Detail: 1
Product Description



 cellphone  repeater GSM,lcd display 3g repeater GSM full set

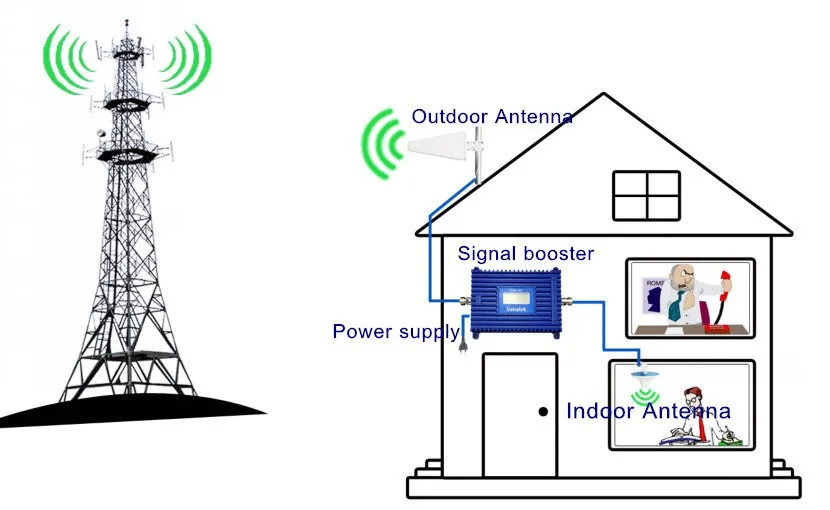

  Full sets

  • 1 - GSM repeater
  • 2 - Outdoor log periodic antenna,wall mounted antenna ,yagi antenna
  • 3 – Indoor Omni ceiling antenna,panel antenna
  • 4 - 10 meters outdoor cables
  • 5 - Power adapter
  • 6 - User manual














Specification



Model No

KW20L-WCDMA

Parameter data

Uplink

Downlink

Frequency Range

UL:1920-1980mhz

DL:2110-2170mhz

Output Power

20 ±2dBm

20 ±2dBm

Gain

70 dB

70 dB

Bandwidth

Wide Band

Automatic Gain Control

>20dB

Ripple in Band

≤5dB

Intermodulation Products

9KHz~1GHz

≤ -36 dBm

1GHz~12.75GHz

≤ -30 dBm

Spurious Emission

9KHz~1GHz

≤ -36 dBm

1GHz~12.75GHz

≤ -30 dBm

Noise Figure @ max. gain

≤ 6 dB

VSWR

≤3

MTBF

>50000 hours

Power Supply

AC:90~265V, 50/ 60Hz;DC:12V 3A

Power Consumption

< 20W

Impedance

50 ohm

Mechanical Specification

RF Connector

N-Female

Cooling

Heatsink Convection cooling

Dimensions (D x W xH )

200*110*25 mm

Weight

1Kg

Installation Type

Wall Installation

Environment Conditions

IP40

Humidity

< 90%

Operating Temperature

-10°C ~ 55°C






Packaging & Shipping

Our Services




Company Information








FAQ

After- Sales Service

We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.


Signal problem & installation technique supporting


1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.

2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.

3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.

4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
